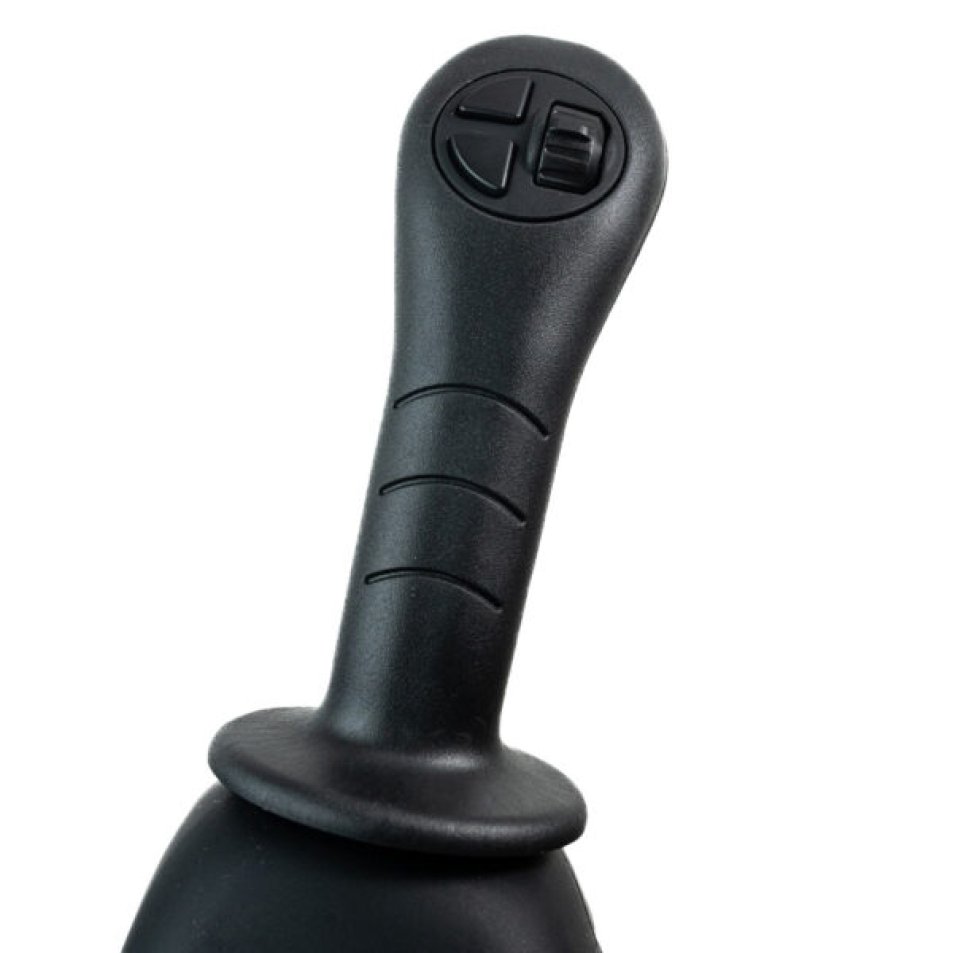

JC9000

Kort om produktet

Nytt produkt , datablad under utarbeidelse

HYDRAULIC FEEL

• Built from 40+ years of engineering excellence
• Seamless integration, promoting operator familiarity

OVER 100 CONFIGURATIONS!

• Universal configurations unlock economies of scale for OEMs
• Variable travel angles and spring forces for optimum flexibility

BUILT TO LAST

• Market-leading mechanical performance
• IP69K, double gaiter for tough environments

FUNCTIONAL SAFETY COMPLIANCE

• Designed with Functional Safety Compliance from concept
• Conforms to 2027 EN ISO 13849 to PLd

• Designed with an operating life of 5 million full cycles to minimise the cost of ownership
• The high position of the shaft pivot-point position has enabled the design to have high strength with minimal under panel depth.
• Each half axis has a separate operating angle and spring force feature, so the joystick can be configured for optimum use in an operating system.
• Hall-effect sensing eliminates contact wear and provides safety functionality via dual outputs which are analysed and safety checked through the on board CAN electronics.
• Electronic robustness is assured with sealing of the internal PCB to a rating of IP67 including the connector.
• A new multi-function grip has been developed to provide flexibility of machine functions with a robust soft-touch outer coating for maximum operator comfort during extended hours of use.
• The grip can be replaced if damaged or a system upgrade is required – grip connected to the base joystick through a second connector.
