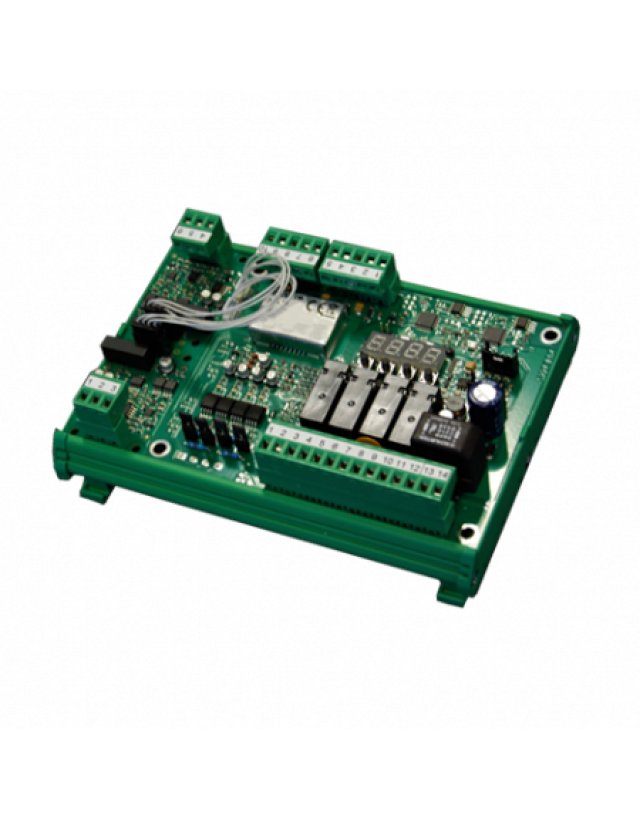

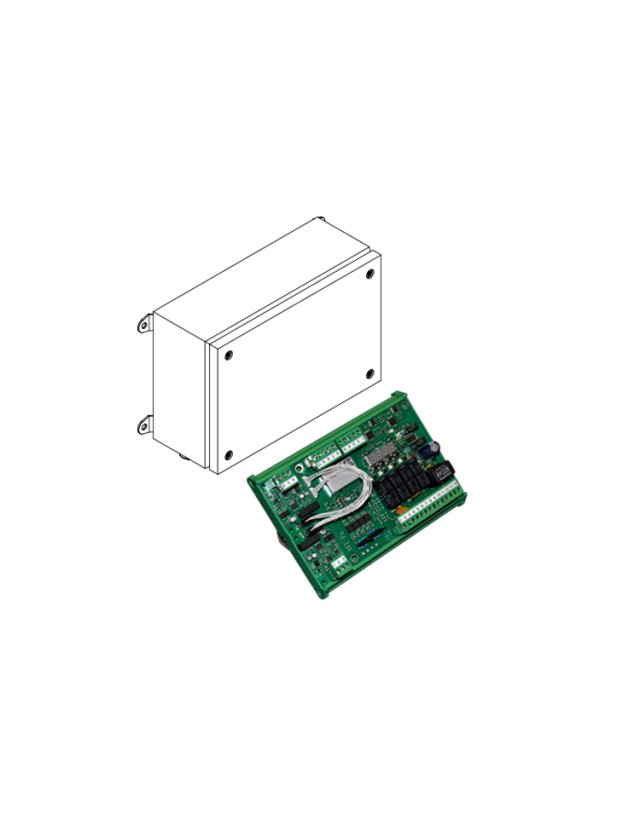

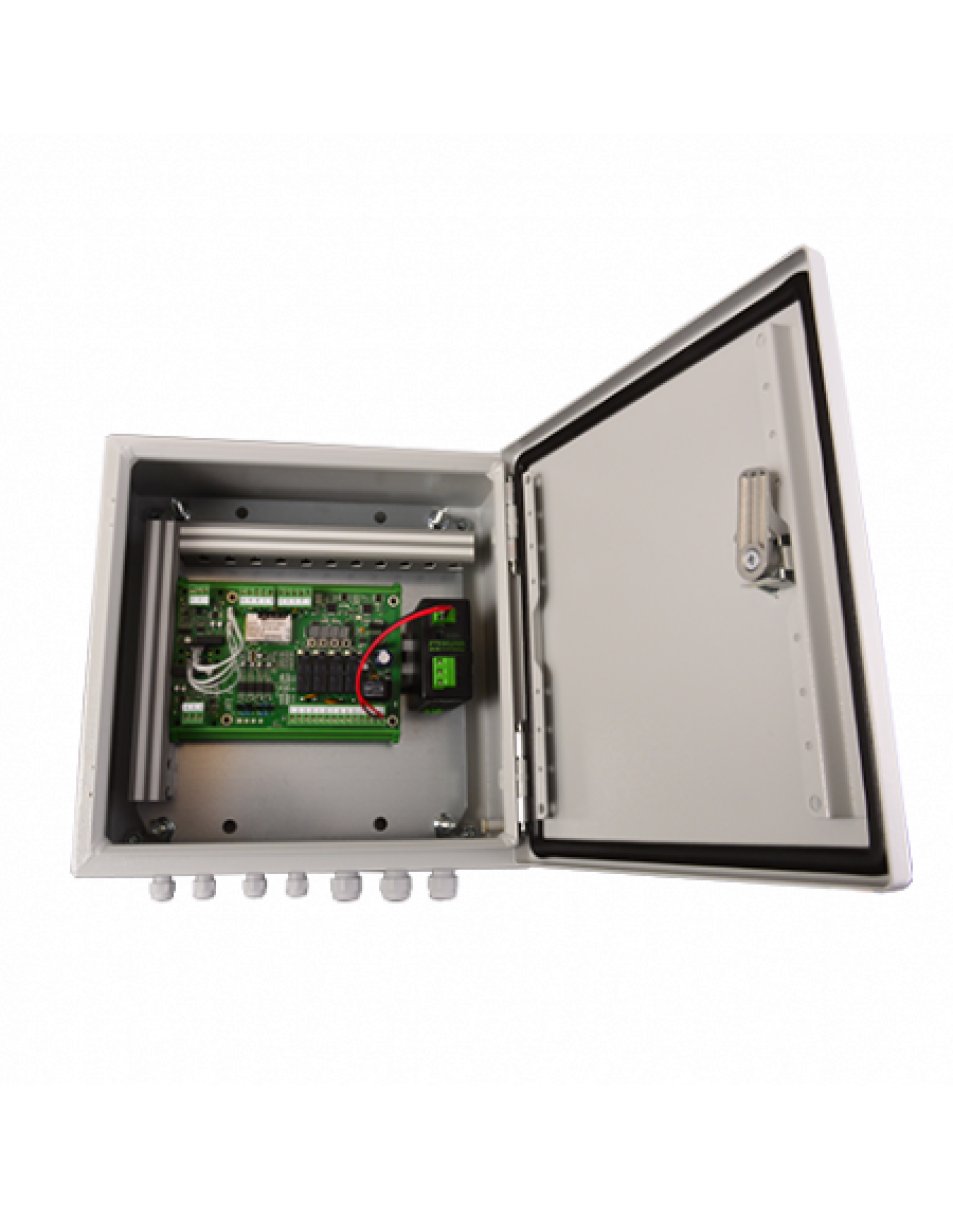

SAFETY-BOY FUNCTIONAL SAFETY CERTIFIED LOAD LIMITER ELECTRONICS
.jpg)
.jpg)
Kort om produktet
Overload protection electronics for hoisting devices with certification for performance level PL d according to EN ISO 13849-1.
o 2 redundant channels with constant comparing of both signals
o PFHd 4.29 x 10E-08
o Load limiter electronics certified for functional safety up to PL d Category 3, DC: medium
o Display of hoisted load and input signal
o Monitoring system of the integrity of load cells with continuous comparison of both channels and internal "watchdog" for the electronics
o Analogue output: 2 x 4...20 mA
Datablad og filer
Typiske applikasjoner
-
Kran- & løft
Fabrikant
Kort om produktet
Overload protection electronics for hoisting devices with certification for performance level PL d according to EN ISO 13849-1.
o 2 redundant channels with constant comparing of both signals
o PFHd 4.29 x 10E-08
o Load limiter electronics certified for functional safety up to PL d Category 3, DC: medium
o Display of hoisted load and input signal
o Monitoring system of the integrity of load cells with continuous comparison of both channels and internal "watchdog" for the electronics
o Analogue output: 2 x 4...20 mA
